Description

Superior Conductor Technology

The foundation utilizes ConneX BL-Ag pure solid core silver conductors in 23 AWG configuration, providing exceptional electrical characteristics for balanced audio transmission. Solid core silver offers 7% higher conductivity than copper, enabling more accurate signal reproduction with reduced resistance losses. The 23 AWG gauge provides optimal current carrying capacity while maintaining the sonic benefits of solid core construction, which eliminates strand interaction and reduces signal distortion compared to stranded alternatives.

Silver’s superior conductive properties translate directly to enhanced audio fidelity, particularly in the critical midrange and high-frequency spectrum where detail retrieval and soundstage precision are paramount. The solid core design eliminates the “strand jumping” phenomenon common in stranded conductors, ensuring consistent signal path integrity throughout the frequency spectrum.

Professional-Grade Neutrik Connectors

Both male and female terminations utilize Neutrik NC3MXX-HE and NC3FXX-HE connectors with velour chromium housing. These premium connectors feature 0.2 µm gold hard alloy plating over 2 µm nickel underplate, providing exceptional corrosion resistance and optimal signal transfer characteristics. The contact resistance specification of ≤ 3 mΩ ensures minimal signal degradation at the critical connector interface.

The extra high temperature resistant insulator material and improved chuck type strain relief deliver enhanced mechanical durability and electrical performance. The velour chromium plating provides superior EMI shielding while the machined female contacts ensure precise mating geometry for consistent performance over > 1000 mating cycles.

Precision Soldering Technology

All connections utilize Cardas Quad Eutectic solder containing proprietary blend of silver, copper, tin, and lead. This four-metal eutectic formulation melts at 364-384°F and solidifies uniformly without slurry state, creating contiguous joints from wire to connector. Unlike conventional 60/40 solders that form millions of small particle connections, the eutectic design ensures perfect and permanent electrical continuity.

The quad eutectic composition provides superior flow characteristics and joint reliability, eliminating the “cold joint” phenomenon common with standard solders. This advanced metallurgy preserves harmonic content and extends frequency response, critical factors in high-resolution audio applications.

Protective Paracord Sleeving

The cable assembly features 5/16″ Para-Max paracord protective sleeving with 3,000 lb tensile strength. This Type IV certified paracord with 32-strand woven nylon outer sheath provides exceptional mechanical protection while maintaining cable flexibility. The 0.31″ diameter construction accommodates the silver conductors and shielding while offering superior abrasion resistance and environmental protection.

Technical Specifications

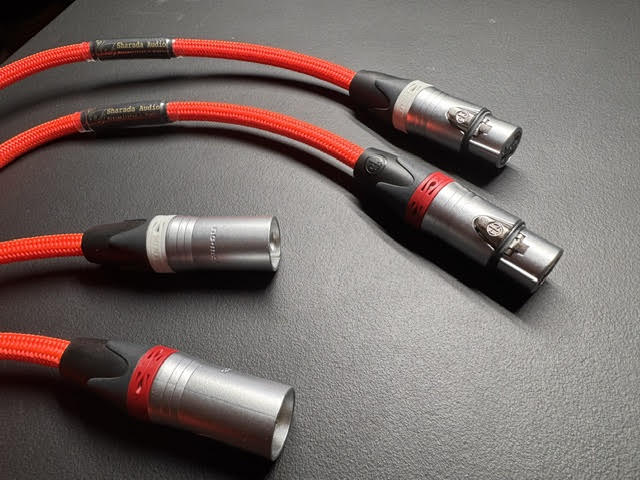

Conductor Configuration: 2 x 23 AWG Solid Core Silver with Shield and Drain Wire
Male Connector: Neutrik NC3MXX-HE with Velour Chromium Housing
Female Connector: Neutrik NC3FXX-HE with Velour Chromium Housing
Contact Plating: 0.2 µm Gold Hard Alloy over 2 µm Nickel
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVdc
Operating Temperature: -30°C to +80°C
Solder: Cardas Quad Eutectic (Sn/Pb/Cu/Ag)
Protective Sleeving: 5/16″ Para-Max Type IV Paracord
Applications: Professional Audio, High-End Hi-Fi, Studio Monitoring

This configuration delivers uncompromising balanced audio performance through scientifically-engineered materials selection and precision manufacturing techniques, ensuring optimal signal integrity for the most demanding audio applications.
